Three-thread fleece circular knitting machine

Price: Negotiable
Model: XF-FL
NET Weight:
Diameter: 30’’
Gauge: 8G-28G
Feeder: 90F
Certification: CE, ISO
Applicable Yarn Material: Cotton, Chemical fiber, blended yarn, silk and wool etc.
RPM: 20-30RPM
Wooden Box Size: 2.7M*2.3M*2.5M
Place of Origin: CHINA.

Get Quote
Three Thread Fleece Circular Knitting Machine Product Description:

The Three Thread Fleece Circular Knitting Machine is a versatile and efficient knitting machine designed specifically for the production of high-quality fleece fabrics. With its advanced technology and robust construction, this machine offers excellent performance and precision in creating soft and cozy fleece materials.

Technical Features:

1. Triple Thread System: The machine is equipped with a three-thread system that enables simultaneous knitting of yarns from different sources, resulting in enhanced fabric texture and thickness control.

2. Circular Knitting Design: Its circular knitting design allows for continuous fabric production without the need for seams, ensuring a seamless finish and improved overall fabric strength.

3. Variable Speed Control: The machine features adjustable speed settings, allowing operators to customize the knitting process according to different fabric requirements and production demands.

4. Automatic Yarn Tensioning: It incorporates an automatic yarn tensioning mechanism, ensuring consistent and even tension throughout the knitting process for uniform fabric quality.

INSTRUCTIONS

High Quality Fleece fabrics on highly productive quantity.

3 Feeders per inch.

4 track cams in cylinder.

Tie-in yarn, ground yarn, lay-in yarn knitted perfectly. Application Area: This machine settles to different structure fabrics used for underwear, sportswear, baby wear.



STANDARD SPECIFICATIONS

MODEL

DIAMETER

GAUGE

FEEDER

APPLICATION YARN MATERIAL

XF-FL

30’’

8G-28G

90F

Cotton, Chemical fiber, blended yarn, silk and wool etc.

32’’

96F

34’’

102F

36’’

108F





REFERENCE OF YARN MATERIAL/ GSM/ WIDTH

DIAMETER

GAUGE

RPM

YARN MATERIAL

GSM

WIDTH

32’’

20G

23

Tie-in Yarn 75D

Ground Yarn 30s

Lay-in Yarn 12s

265-320g

75-83cm

34’’

22

81-88cm

32’’

26

Tie-in Yarn 30s

Ground Yarn 12s

Lay-in Yarn 12s

200-290g

75-83cm

34’’

24

240-290g

77-87cm

Speed of machine depends on yarm used, kniting condition, gauge etc. So please select proper speed for machine base on different yarn and knitting condition, We give a normal speed guidance as following:

GUIDE SPEED

DIAMETER

GAUGE

FEEDER

RPM

24’’

14G-24G

72F

20-30RPM

26’’

78F

30’’

90F

34’’

102F

PACKAGING & SHIP

XF-FL

34’’DIAMETER

N. W. APPROX

2.0T

G. W. APPROX

2.5T

WOODEN BOX SIZE

2.25M*2.23M*2.25M





Main Functions:

1. Fleece Fabric Production: The machine enables the efficient production of high-quality fleece fabrics with varying thickness, textures, and patterns.

2. Fabric Customization: It allows for customization of fabric specifications, including density, pile height, and stretch, to meet specific design requirements.

3. Seamless Knitting: By utilizing its circular knitting design, the machine produces seamless fabrics, eliminating the need for additional stitching processes.

4. High-Speed Production: With its adjustable speed settings and triple thread system, the machine can achieve high productivity, optimizing production efficiency.In conclusion, the Three Thread Fleece Circular Knitting Machine is an advanced and versatile knitting solution that offers precise control, seamless fabric production, and customization options. It serves various industries and facilitates the creation of high-quality fleece fabrics with superior comfort and aesthetic appeal.


Important Considerations:

1. Proper Maintenance: Regular maintenance and cleaning are essential to ensure optimal performance and longevity of the machine. Follow the manufacturer's guidelines for maintenance procedures.

2. Operator Training: Adequate training should be provided to machine operators to familiarize them with the machine's operation, safety protocols, and troubleshooting techniques.

3. Safety Measures: Operators should follow all safety instructions and wear appropriate protective gear while working with the machine to prevent accidents and injuries.



Application Areas:The Three Thread Fleece Circular Knitting Machine finds its application in various industries, including:

1. Textiles: It is widely used in the textile industry for producing fleece fabrics used in clothing, home textiles, and accessories.

2. Apparel Manufacturing: The machine is ideal for the production of fleece garments such as jackets, sweaters, hoodies, and blankets.

3. Upholstery: It can also be employed for manufacturing fleece upholstery fabrics used in furniture, automotive interiors, and other decorative applications.

three-thread fleece circular knitting machine

Related Resource

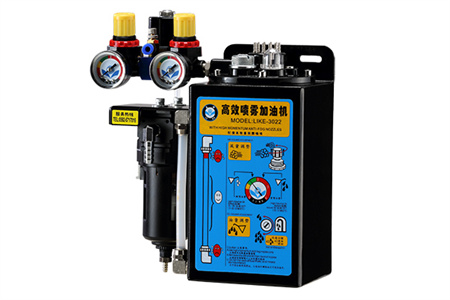

Related Main Parts Xingfa offers a full range of spare parts for a wide range of Three-thread fleece circular knitting machine.
They all meet the highest standards of quality.
Learn More About Parts
Three-thread fleece circular knitting machineRelated Services

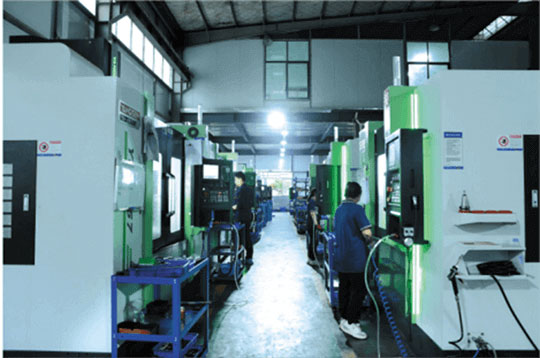

Related Quality Control We Control Three-thread fleece circular knitting machine Quality From Source,
Improving And Producing The Equipment Ourselves.
1.Feedback System
Establish a feedback system that allows operators and quality control personnel to provide input on machine performance, identify areas of improvement, and address any concerns.
2.Environmental Controls
Implement appropriate environmental controls, such as temperature and humidity monitoring, to prevent adverse effects on the knitting process and product quality.
3.Machine Performance Testing
Conduct comprehensive testing on the knitting machine's performance, including speed, tension control, stitch formation, and overall functionality.
4.Failure Analysis
Perform thorough failure analysis on any products that do not meet quality standards, identifying root causes and implementing corrective actions to prevent recurrence.

Related Certification
A kind of high speed spandex single side circular knitting machine
A kind of lifting and carrying loop single-sided computerized jacquard machine
A ring frame rail mechanism for cylinder frame knitting machine
A kind of knitting machine double channel cam triangle piece-utility model patent certificate

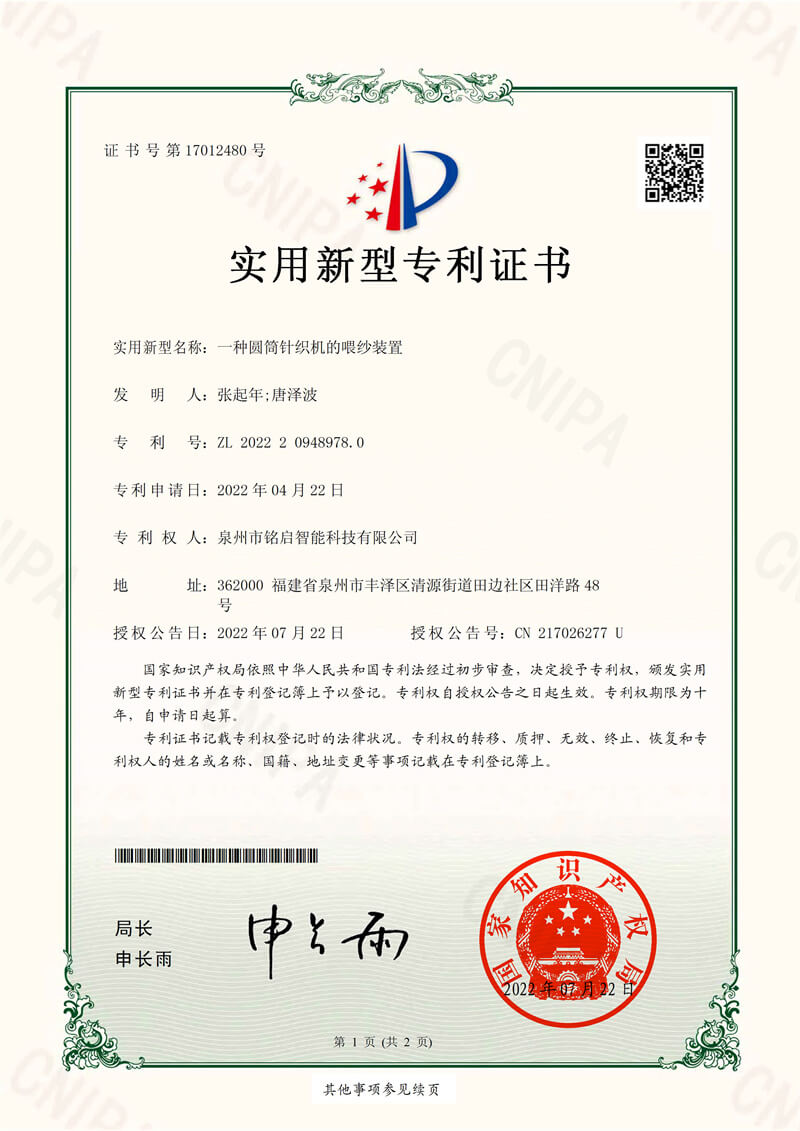

A yarn feeding device for circular knitting machines
A kind of upward moving circle opener mechanism-utility model patent certificate

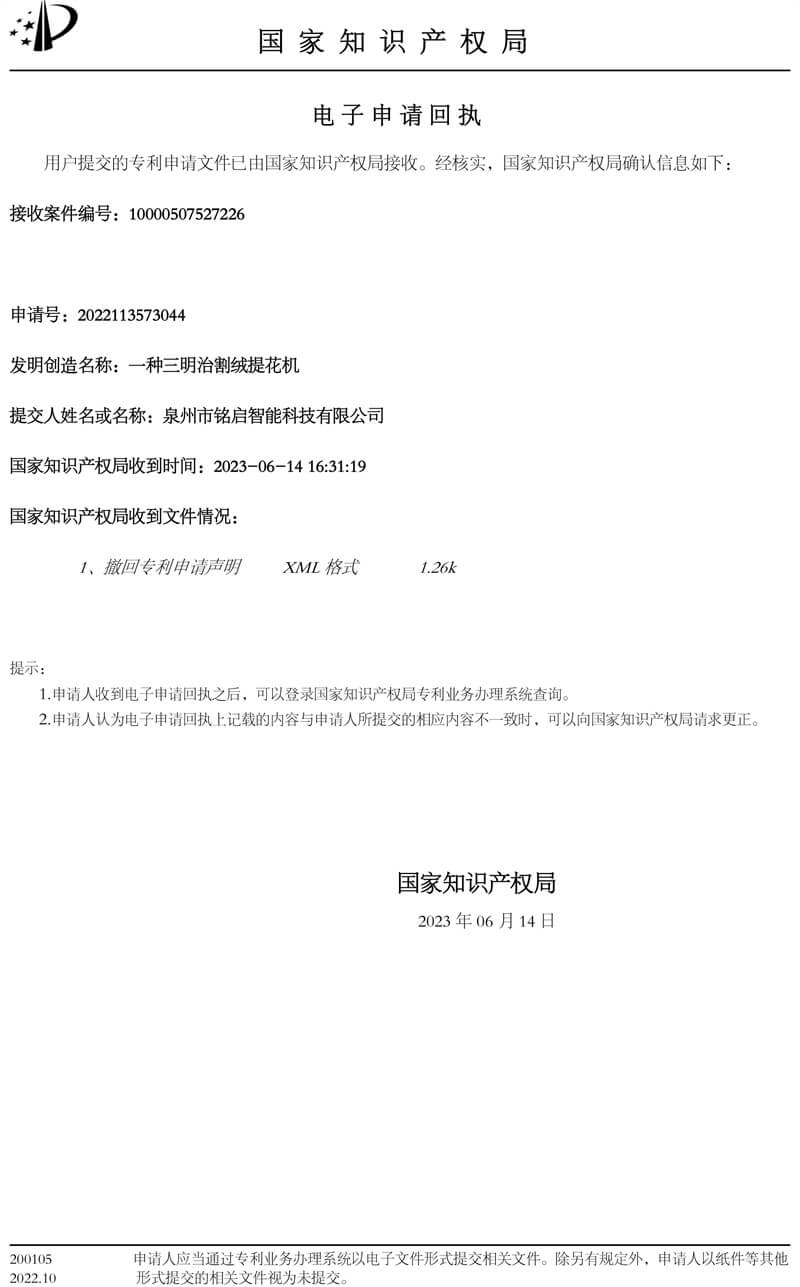

A kind of sandwich cut velvet jacquard machine

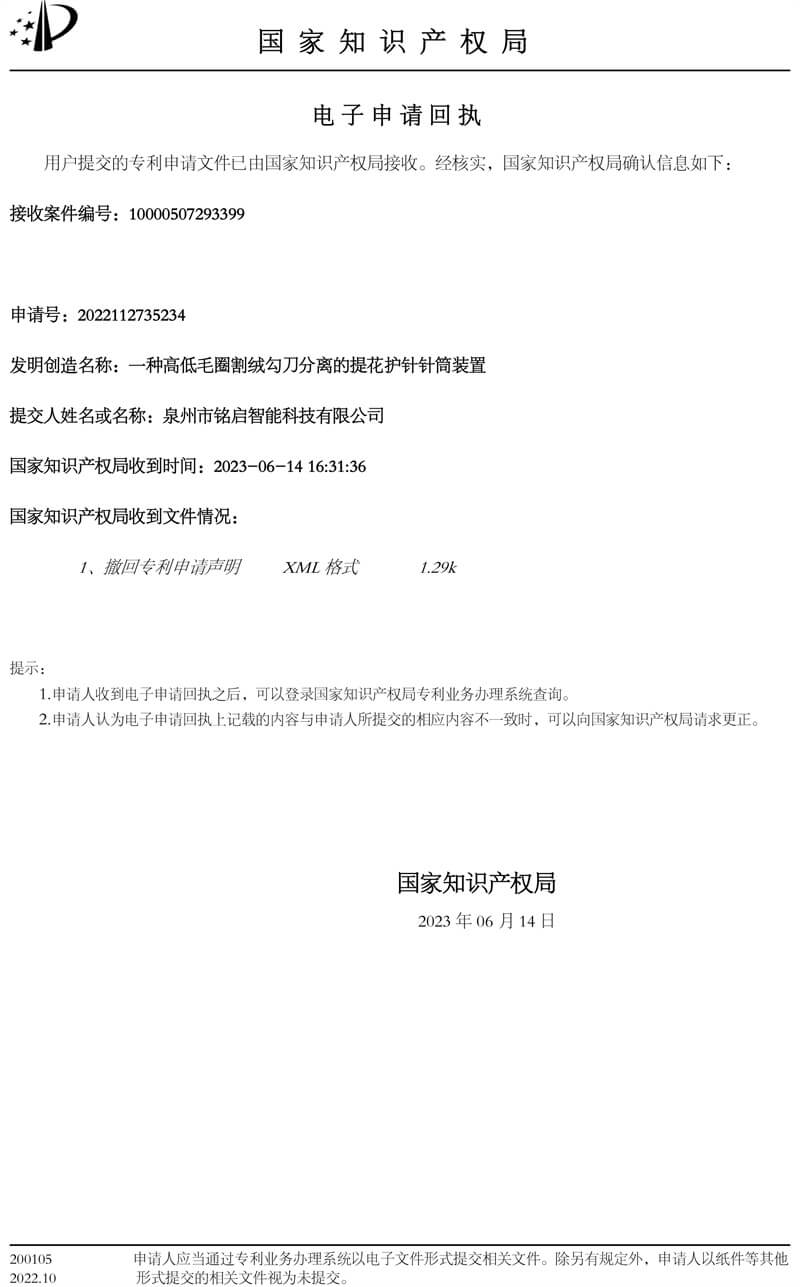

A kind of jacquard needle guard cylinder device with high and low terry cut pile hook knife separation
A kind of sinker for cutting yarn with auxiliary knife

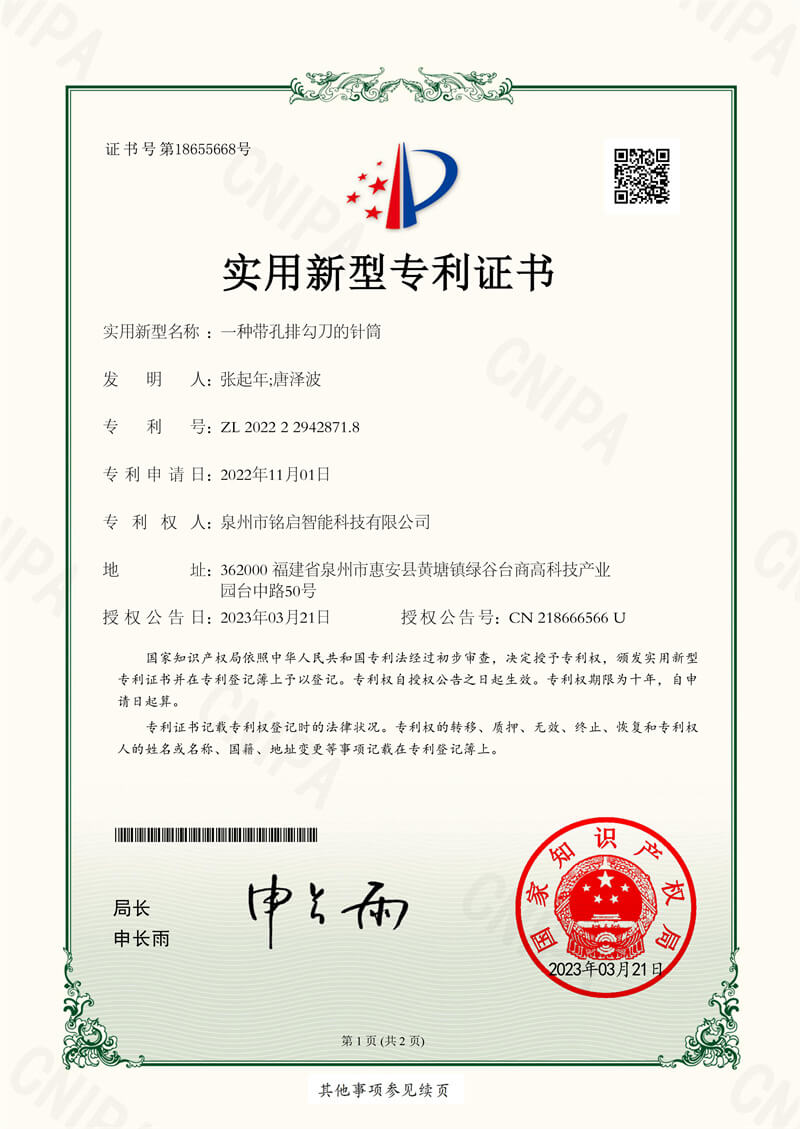

A kind of needle cylinder with hole row hook knife
